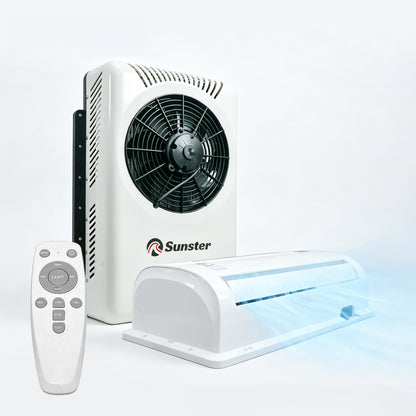

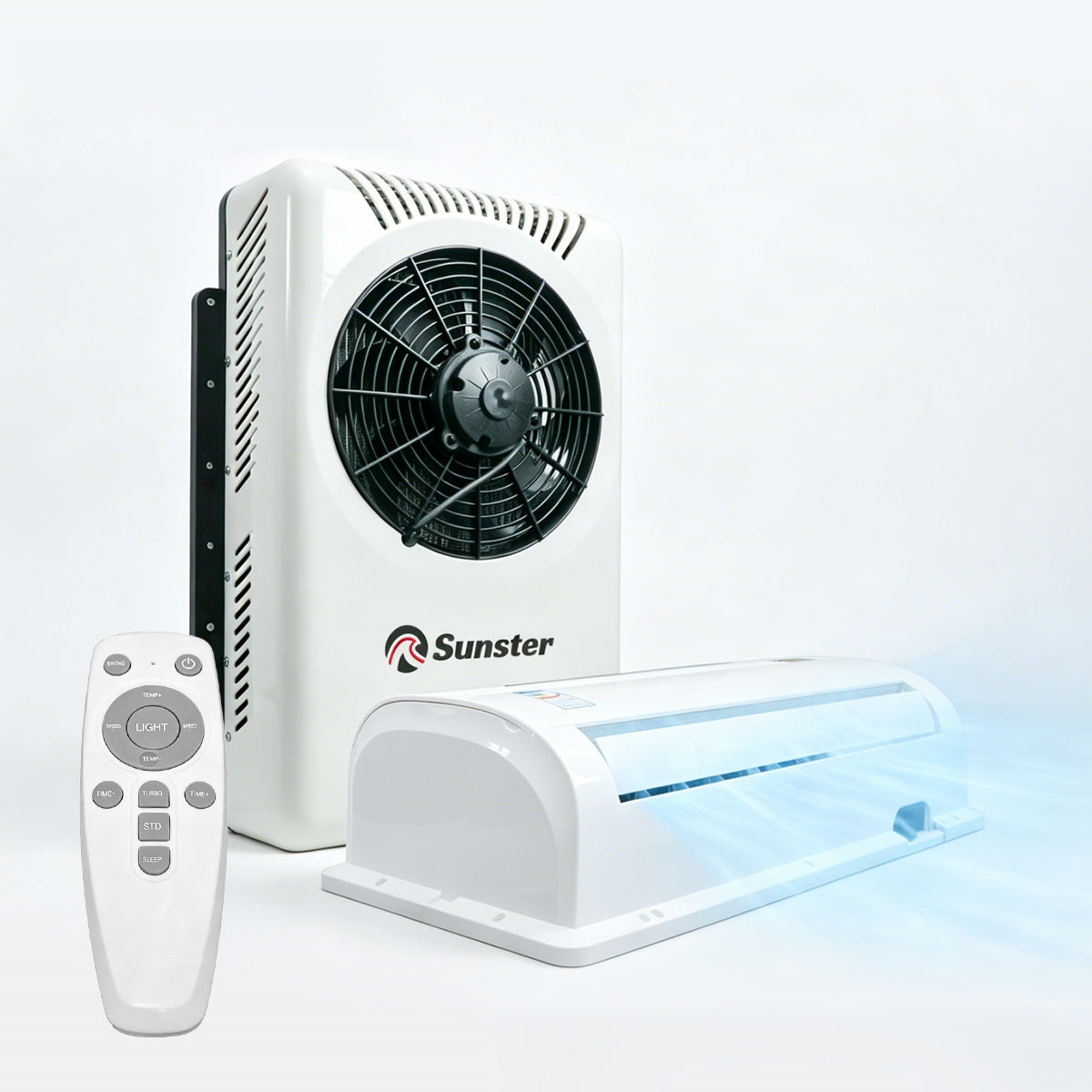

Sunster S-AC4 RV Air Conditioner 12V/24V Ultra Quiet AC Efficient Cooling

Stay Cool Anywhere, Anytime

The Sunster S-AC4 is a cutting-edge parking air conditioner designed to provide optimal cooling for vehicles such as trucks, RVs, and heavy machinery. Operating efficiently on both 12V and 24V power systems, it ensures a comfortable environment even when your vehicle's engine is off.

Technical Specifications:

Voltage: 12V/24V

Rated Current: 30-50A

Undervoltage Protection: 9-11.2V (12V systems) / 19-21.5V (24V systems)

Rated Power: 300-850W

Cooling Capacity: Up to 2200W for 12V systems and up to 2400W for 24V systems

Control Mode: Intelligent drive

Refrigerant/Charge: R1234yf/R134a (No Included)

Refrigeration Oil Type: POE68

Air Volume: 250-450 m³/h

Key Features:

Remote Control Convenience: 📲 Easily adjust temperature settings from the driver's seat using the intuitive LED display or the included remote control.

Battery-Powered Efficiency: 🔋 Operates directly from your vehicle's 12V or 24V battery, allowing continuous use without the need for engine power, thereby conserving fuel and extending usage time.

Efficient cooling/quiet: Equipped with electric scrol Inverter compressor, lower fuel consumption, high energy efficiency, low consumption, fast cooling, strong drive power, lower noise, sleep mode with only 20dB and long service life.

Intelligent Low Voltage Protection: ⚡️ Features undervoltage protection mechanisms (9-11.2V for 12V systems and 19-21.5V for 24V systems) to prevent excessive power consumption and ensure a smooth startup without stressing the power source.

Universal Compatibility: 🚜 Designed to fit a wide range of vehicles, including trucks, RVs, agricultural machinery, excavators, bulldozers, cranes, passenger cars, vans, light trucks, and construction vehicles.

Powerful Cooling Performance: ❄️ Capable of running for 8-12 hours after the engine is turned off, promoting energy efficiency and environmental sustainability.



Package Includes:

1 x 12V/24V Car Air Conditioner

1 x Internal Unit

1 x Sewer Pipe

1 x 3M High-Pressure Pipe

1 x 3M Low-Pressure Pipe

1 x Internal Unit Mounting Plate

1 x Screw Bag

1 x Adhesive Tape

1 x Internal and External Signal Lines

1 x 3M Battery Line

1 x User Manual

1 x Remote Control

Important Notes:

Refrigerant Addition Required: 🛠️ The air conditioner does not come pre-charged with refrigerant; 600g of R1234yf/R134a(No Included) needs to be added before use.

Pre-Added Refrigeration Oil: 🛢️ The unit already contains POE68 refrigeration oil; no additional oil is necessary.

Vacuum Process: 🧰 It's essential to vacuum the system for 15-20 minutes before adding refrigerant to ensure optimal performance.

Refrigerant Pressure Specifications: 📏 When adding refrigerant, aim for a low-pressure gauge reading of 35 psi and a high-pressure reading between 140-180 psi.



Battery and Generator Requirements:

For 12V systems: Minimum 100A battery and a 1500W generator.

For 24V systems: Minimum 80Ah battery and a 55A generator.

Ensure your vehicle's battery meets these requirements for optimal operation.

Installation & Unit Details:

✅ Outdoor Unit: Integrated variable frequency compressor, high-power electronic fan, and high-density condenser. Can be installed vertically (front of vehicle) or horizontally (roof-mounted).
✅ Indoor Unit: Low-decibel silent operation, 360° airflow rotation, ensuring even air distribution throughout the vehicle.

---

Common Q&A:

❓ How should I maintain the air conditioner?
✔️ Turn off the power before cleaning. Use a neutral cleaning agent for surface cleaning. Remove the outer shell and blow out dust with high-pressure air. Regularly check the battery power and ensure air vents are clear.

❓ What should I do if the battery power is low?
✔️ If the system enters low-voltage protection, switch to energy-saving mode for temporary operation. However, it's recommended to recharge the battery as soon as possible.

❓ How do I troubleshoot abnormal operation?
✔️ Check the error code on the display panel or compressor LED light. Refer to the user manual for troubleshooting instructions.
