Diesel Heater Controller Error Codes E01–E11 Explained (with Video)
Diesel Heater Error Codes E01–E11 Explained (E01–E10 Video Walkthrough)
A complete troubleshooting guide for Sunster smart diesel air heaters. Watch the per-code fix videos for E01–E10, then check the table for E11 (CO) safety actions.
Sunster Smart Models · 2026 (WiFi / 4G / Bluetooth)
All Sunster smart heaters use a Controller Unit (panel/keypad or LCD). The E01–E10 videos below demonstrate fixes on A2200B / A2209 as reference examples — the same fault logic also applies to other Sunster air heater models not listed individually here. The only exception is the S-DZ06 LCD Bluetooth controller, which uses its own code map and is not covered by these videos. E11 (CO) always follows the safety rules below.
WiFi
A2209BSWIV1
WiFi
A2409PW
WiFi
A2605
WiFi
A2409WB
WiFi
A2509SWI
4G/LTE
2602BLTES
4G/LTE
S-A2446
Bluetooth
A2409Pro
Bluetooth
A2201
Bluetooth
A2602B
Bluetooth
S-A2200B

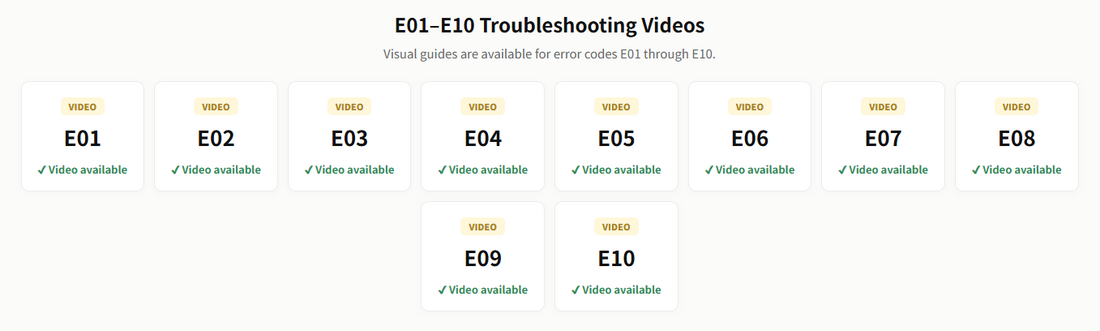

E01–E10 Troubleshooting Videos
One short video per fault code. Disconnect power before any plug check or part replacement.
E01–E11 Error Codes & Fixes (Quick Table)
Use this table to quickly identify the fault and the action required.
| Code | Fault | Troubleshooting / Fix |
|---|---|---|
| E01 | Startup Fail | 1. Check if the fuel pump is working 2. Check if fuel line connections are clogged or blocked |
| E02 | Fuel Empty / Flameout | 1. Fuel tank is empty (refill fuel) |
| E03 | Voltage Abnormal | 1. Match supply to 12V/24V 2. 24V: >32V or <18V abnormal 3. 12V: >18V or <9V abnormal 4. Check main harness plug |
| E04 | Outlet Air Sensor Abnormal | 1. Check outlet temp sensor plug 2. Replace outlet temp sensor |
| E05 | Inlet Air Sensor Abnormal | 1. Mainboard fault — replace mainboard |
| E06 | Fuel Pump Abnormal | 1. Check pump plug 2. Check harness wires 3. Replace fuel pump |
| E07 | Fan / Blower Abnormal | 1. Fan blades stuck? 2. Fan plug loose? 3. Replace fan 4. Check Hall magnet 5. Replace mainboard if needed |
| E08 | Glow Plug / Igniter Abnormal | 1. Check glow plug plug 2. Replace glow plug 3. Replace mainboard if needed |
| E09 | Overheat Protection | 1. Clear air inlet obstruction 2. Clear air outlet obstruction |
| E10 | Overheat Sensor Abnormal | 1. Check temp sensor plug 2. Replace sensor 3. Replace mainboard if needed |
| E11 | CO (Carbon Monoxide) Overlimit | 1. CO exceeded — ventilate & evacuate immediately |
Important Safety & Installation Notes
CO Safety (E11): If you see E11, the environment has dangerous CO levels. Open windows/doors, turn off the heater, and evacuate. Never run a diesel heater in a sealed sleeping area without external exhaust and a CO alarm.
Electrical Safety (E03): Verify battery health and wiring gauge. Poor 12V/24V connections cause repeated faults — use a multimeter to confirm.
Airflow (E09): Overheat usually means intake or exhaust pipe is blocked. Keep combustion air clean and the outlet duct clear.
