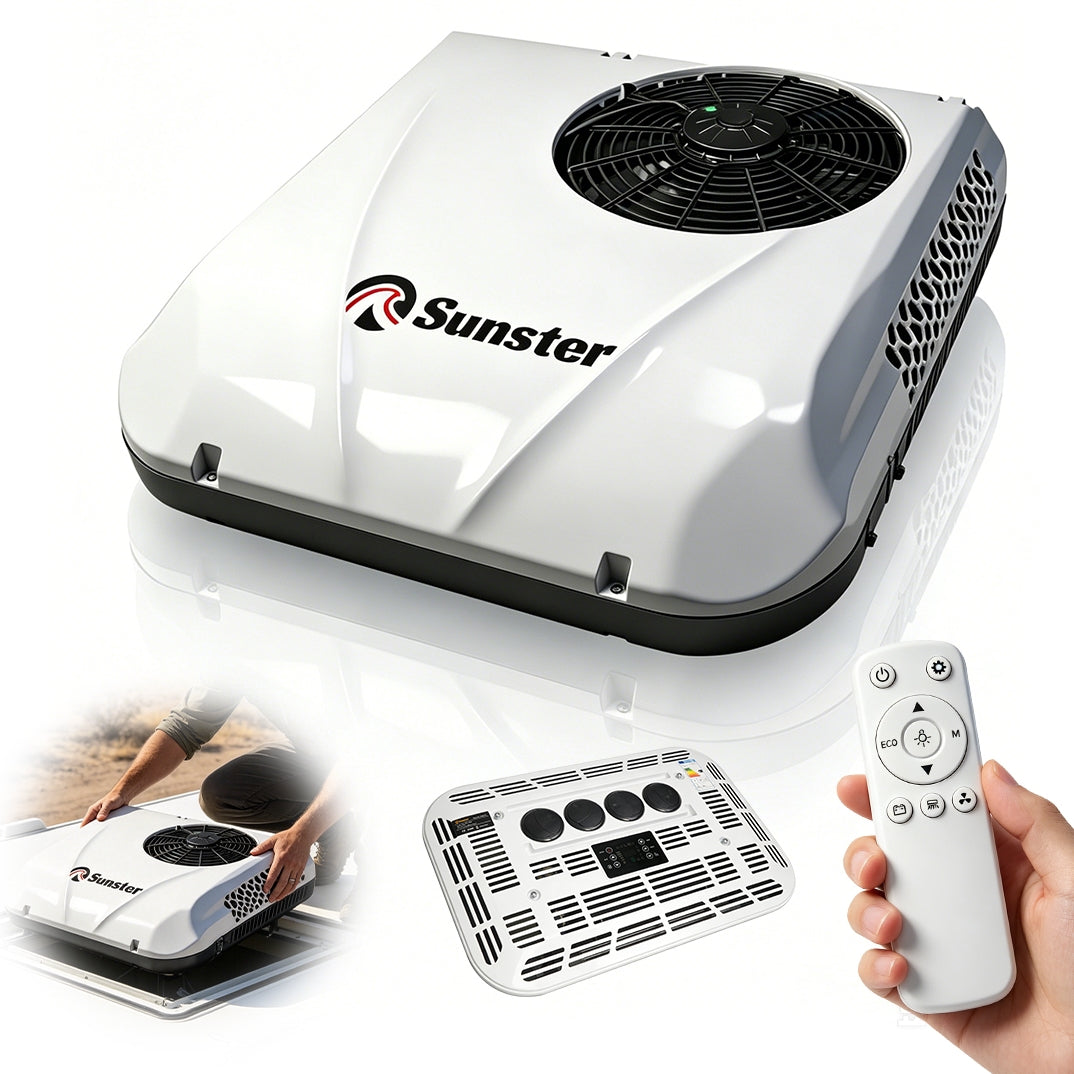

Sunster RV Roof Air Conditioner 12V/24V Efficient Cooling DDK-KTD1

Free Shipping & Duties Included.

Voltage 12V 24V

Quantity

Out of stock

⚠️ ⚠️⚠️Important Notes

⚠️ 1. There is no refrigerant inside the air conditioner, and R1234yf/ R134a（ 450-500g） not include， needs to be added
⚠️2、Refrigeration oil type: POE68(included)
⚠️3、Vacuum for 10 minutes before adding refrigerant until the low pressure gauge shows a negative value.
⚠️4、Parking air conditioning Battery Requirements
12V: At least 120AH single battery and 60A generator are required.
24V: At least 100AH single battery and 50A generator are required.
⚠️5：Standard Fit: Roofs Thick ≤ 5cm.
For Thicker Roofs:
1、Use longer screws to attach the bracket to the panel.
2、Wrap a piece of flexible plastic around the connection and seal it with adhesive, or slip on a plastic duct to connect to the air outlet and prevent air leakage.

❄️ Powerful Cooling, Fast Temperature Drop

Rapid Cooling: Drops the cabin temperature by approximately 10°C in just 15-20 minutes (tested in a sealed, shaded cabin environment).
Optimal Cooling Capacity: Highly efficient energy consumption with a low 400W–700W power draw, perfectly tailored for sustainable cooling.
Flexible Cooling Coverage: Ideal for spaces ranging from 3 to 8 m³—making it the perfect fit for compact RVs, small truck cabs, SUVs, and campers.
Minimum Temperature Setting: Cools down all the way to 16°C, ensuring a refreshing and comfortable rest even in scorching weather.

🎛️ Smart Modes & Energy Efficiency

4 Operating Modes:
Powerful Mode / ECO Mode / Sleep Mode / Fan-Only Mode.
Electronic Fan Power: Only 100W
Energy-saving and reduces battery load.
Adjustable Power Range:
12V: 300–700W
24V: 400–1200W
Automatically adjusts output to avoid unnecessary energy waste.
Energy-Saving Technology:
Designed to maximize comfort while minimizing power consumption.

🔋 Battery-Friendly & Long Runtime

Works with 100Ah+ batteries, ideal for long-distance RV and truck travel.

Battery & Generator Requirements:

12V Version: Minimum 100Ah single battery + 60A generator
24V Version: Minimum 100Ah single battery + 50A generator

Low power consumption ensures extended runtime without overloading your vehicle’s electrical system.

🛡️ Reliable, Durable & Safe

DC Variable Frequency Compressor (Scroll Type):
Efficient, powerful, quiet, and built to handle rough road conditions.
Overcurrent Protection:
Prevents circuit overload and protects both the unit and your vehicle.
High-Strength Base Plate + ABS Shell:
Durable construction, resistant to vibration, impact, and extreme temperatures.
Noise Level: 60–70 dB
Comparable to normal conversation—cool in comfort without disturbing sleep or work

📏 Easy Installation & Compact Design

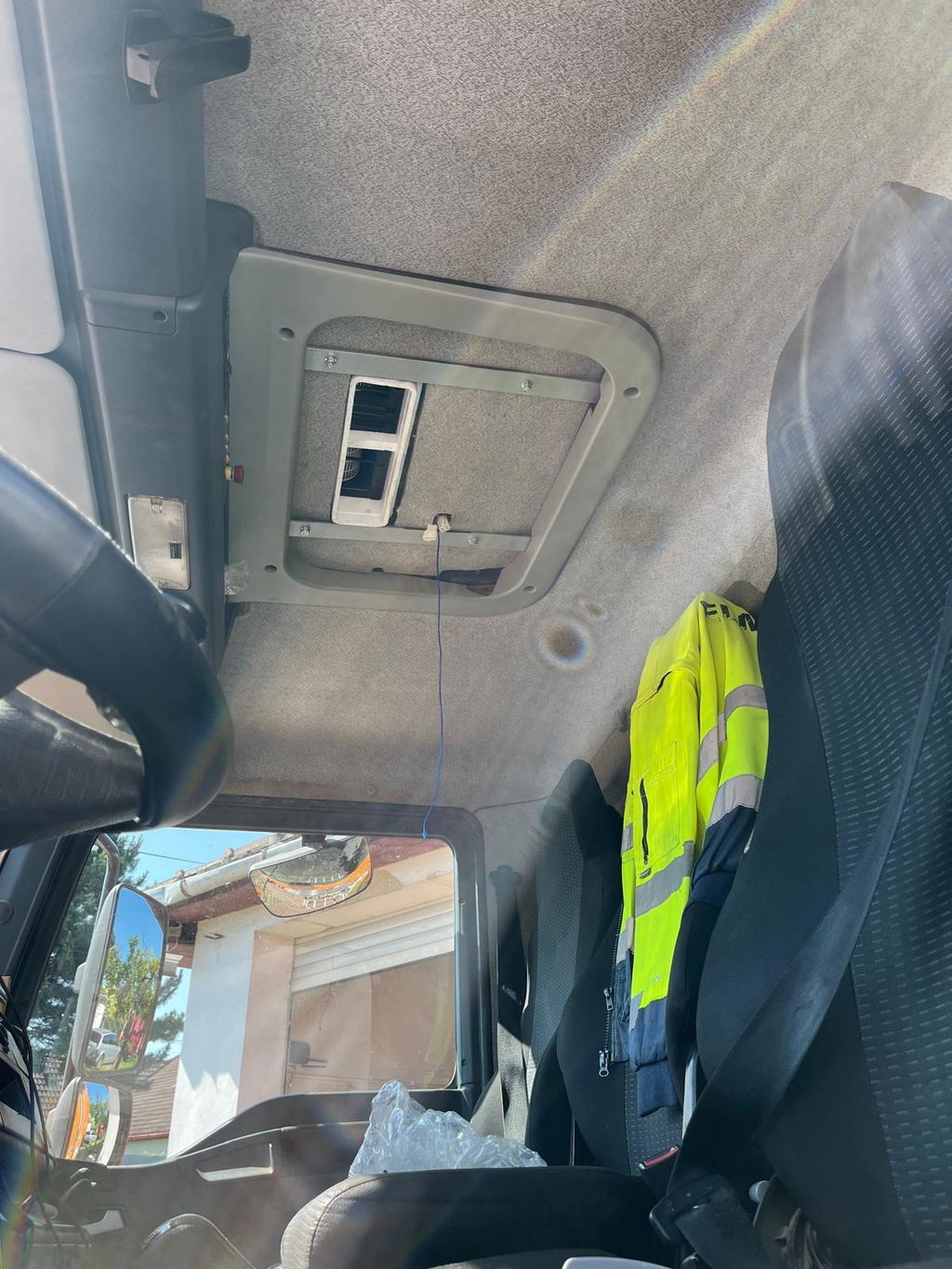

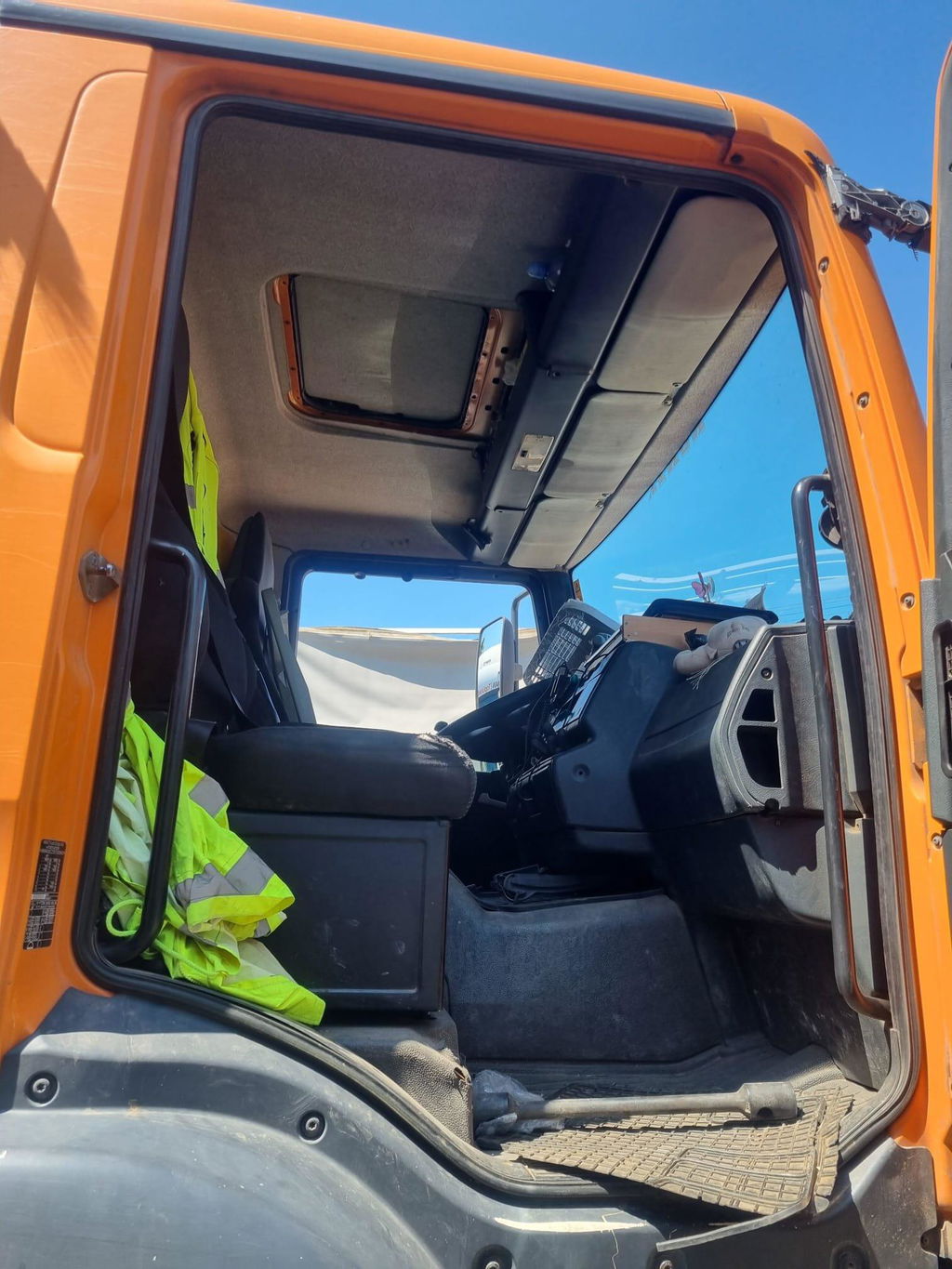

Minimum Roof Opening: 20 × 40 cm
Maximum Roof Opening: 35 × 50 cm
Fits most standard sunroof openings.
Compact Design with High Air Volume
Optimized structure ensures efficient airflow and excellent circulation.
