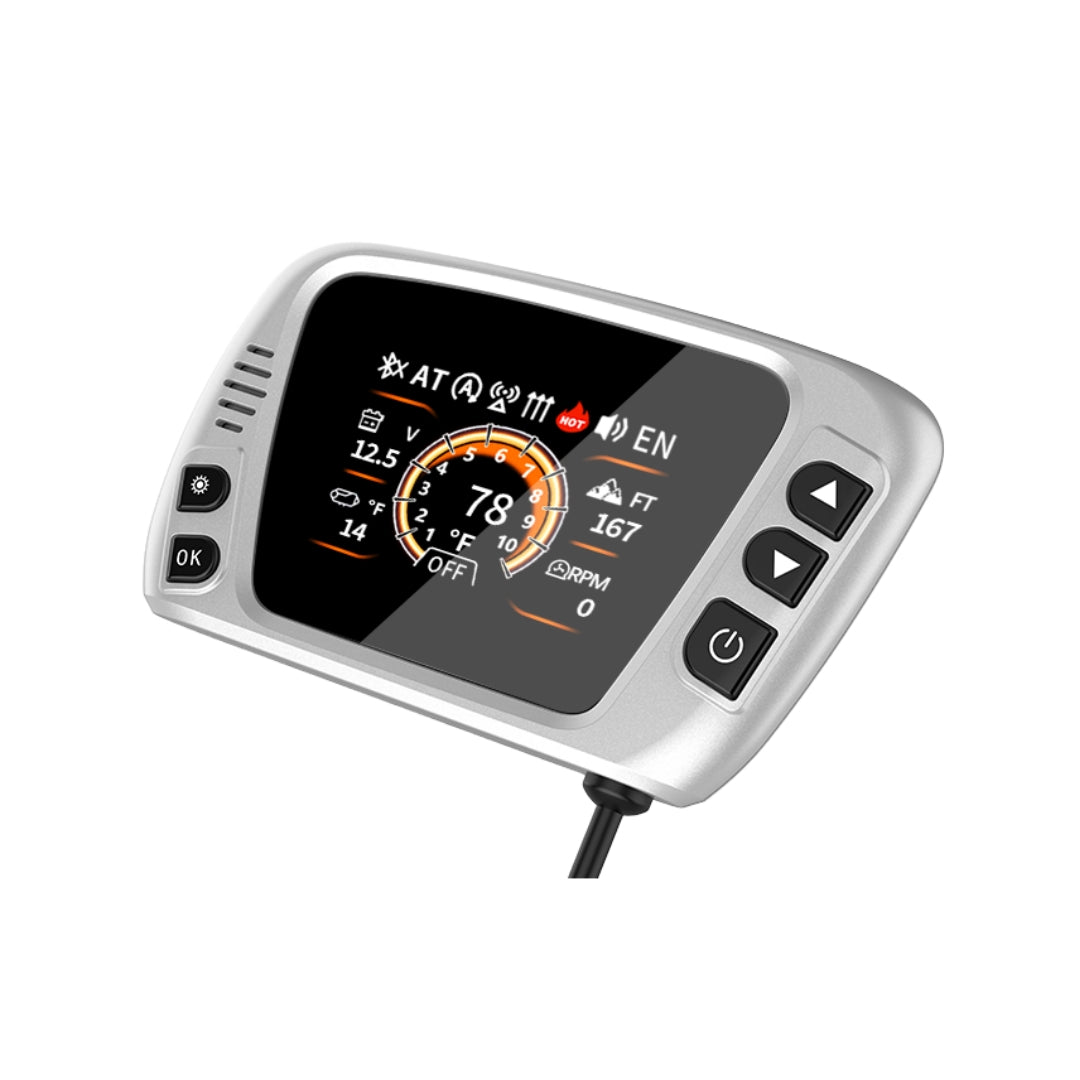

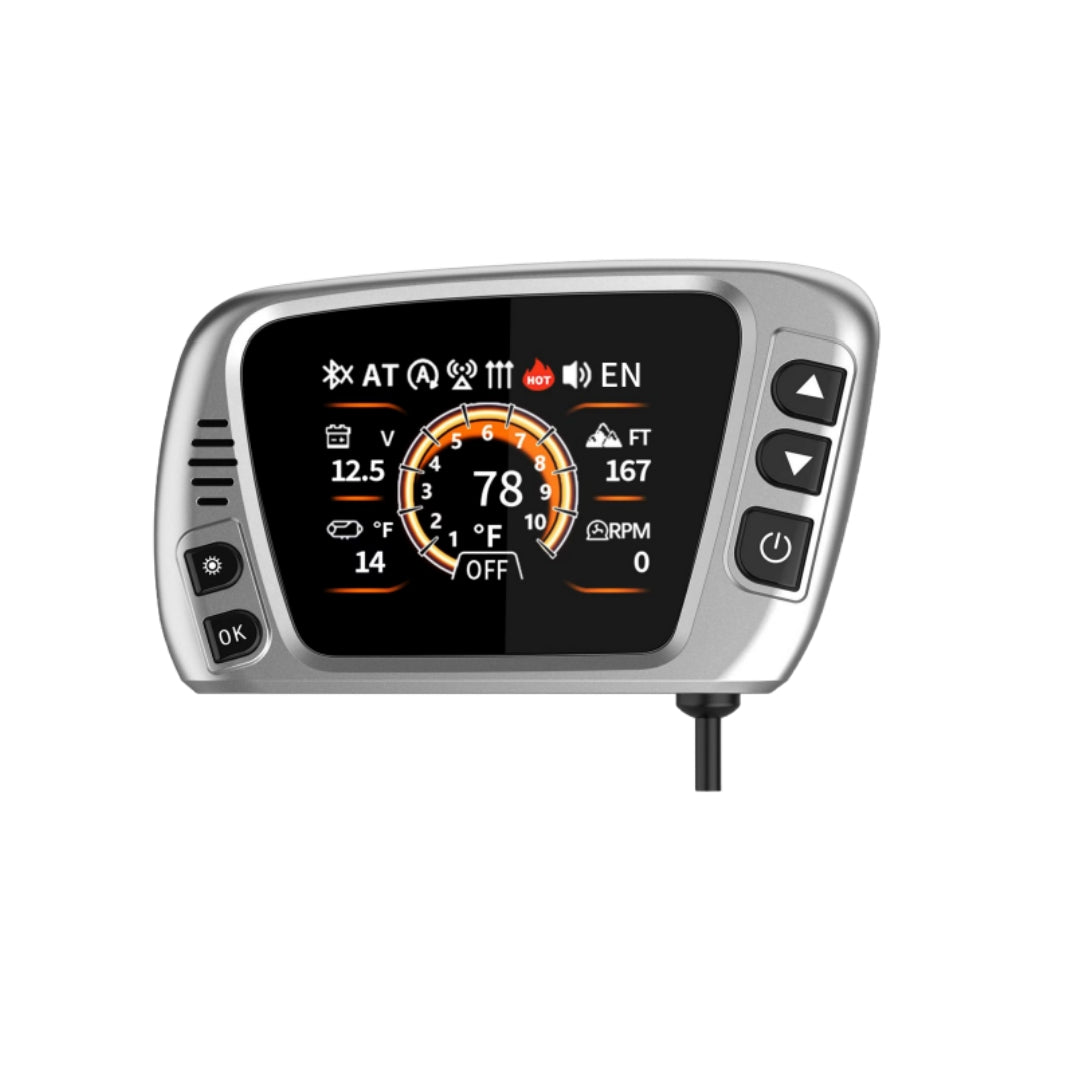

S-DZ06 LCD Switch Bluetooth Remote Control 12/24V

🔧 Product Specifications & Features

📟 Basic Information

Interface: 3-wire serial connection

Installation Method: Back clip

Display: 2.4-inch TFT color screen

Control: 5-button operation

Brightness Adjustment: ❌ Not supported

📡 Connectivity & Control

Wireless Remote: ✅ Optional

Remote Frequency: 433 MHz

Bluetooth: ✅ Built-in

OTA Upgrade: ✅ Supported (firmware & image content)

Clock Auto-Sync: ✅ Time auto-synchronizes via Bluetooth

🔐 System Configuration

Admin Password: ✅ Supported & customizable

Parameter Adjustment: ✅ Editable via settings

Engineering Mode:
Key system data shown directly on the main screen – no need to enter special mode

🌍 Environmental & Measurement Units

Altitude Display: ✅ Supported

Altitude Unit: Meters / Feet (ft)

Temperature Unit: Celsius / Fahrenheit

Temperature Unit Switching: ✅ Supported

Temperature Compensation: ❌ Not supported

Fuel Type: Diesel only (not adjustable)

🕒 Display & Timing

Time Display: ✅

Weekly Timer: ✅ Up to 2 groups/day

Sleep Mode Display: ✅

Auto Screen Off: ✅

Operating Time Display: ✅

Startup Current: ≤ 10A

🔁 Function Modes

Gear Mode: ✅

Temperature Control Mode: ✅

Fuel Pump Mode: ✅

Auto Start/Stop (Thermostat Mode): ON/OFF toggle

High Altitude Mode: ✅

Ventilation Mode: 🚫 (To be added)

Boost Heating Mode: 🚫 (To be added)

🔧 Advanced Settings

Ignition Power Setting: Adjustable within safe range

Initial Fuel Setting: Fine-tune for ignition phase

Max Fuel Setting: Fine-tune for full-power operation

Initial Air Volume Setting: Adjustable for startup

Max Air Volume Setting: Adjustable for full-power airflow

❗ Diagnostics & Security

Error Codes: 10 types supported

Remote Binding:
Pairing a new remote will automatically clear old key data
