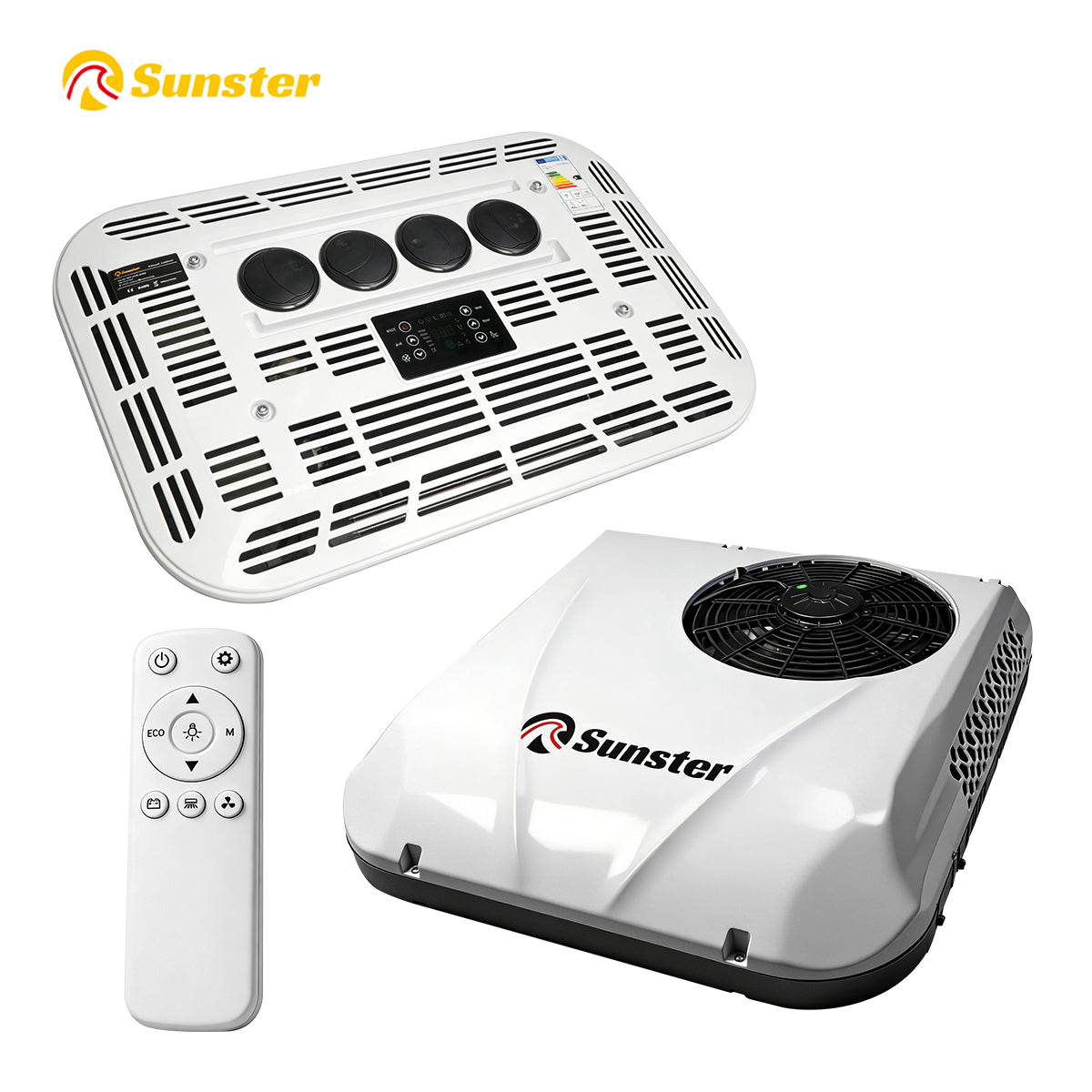

12V & 24V Rooftop Air Conditioner for RVs, Trucks, and Campers

Technical Specifications:

Feature	12V Model	24V Model
Power	300-700W	400-1200W
Rated Voltage	12V	24V
Refrigeration Capacity	1800W	2600W
Battery Requirement	Above 100Ah	100Ah
Rated Current	50A	35A
Refrigerant	R1234yf/R134a(No Included)	R1234yf/R134a(No Included)
Maximum Current	60A	50A
External Air Circulation	2000m³/h	2000m³/h
Internal Air Circulation	400m³/h	400m³/h
Air Outlets	4	4
Electronic Fan Power	100W	100W

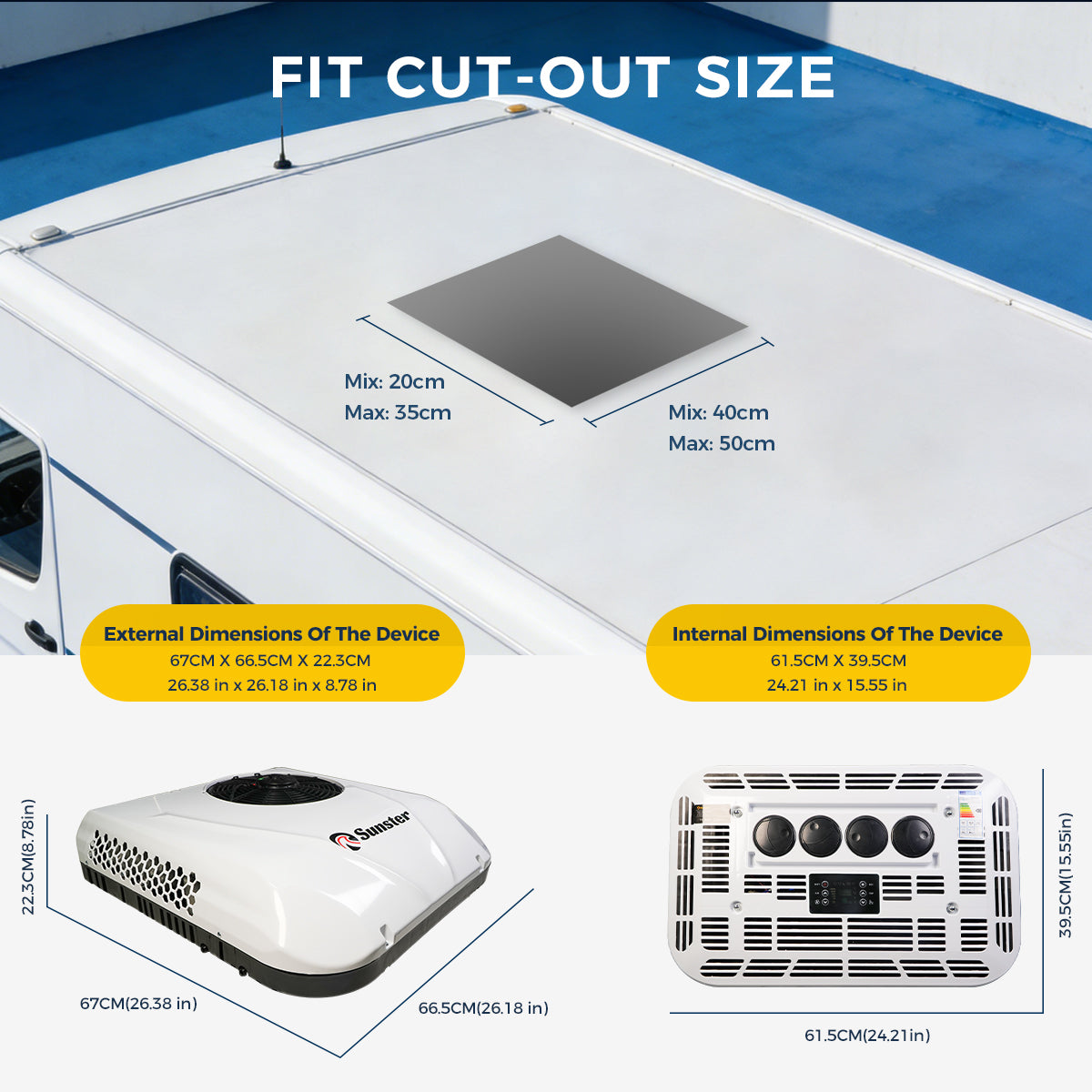

Minimum Skylight Size	400mm x 200mm	400mm x 200mm
Overall Dimensions	680mm x 685mm x 145mm	680mm x 685mm x 145mm
Total Weight	19.8kg	19.8kg

---

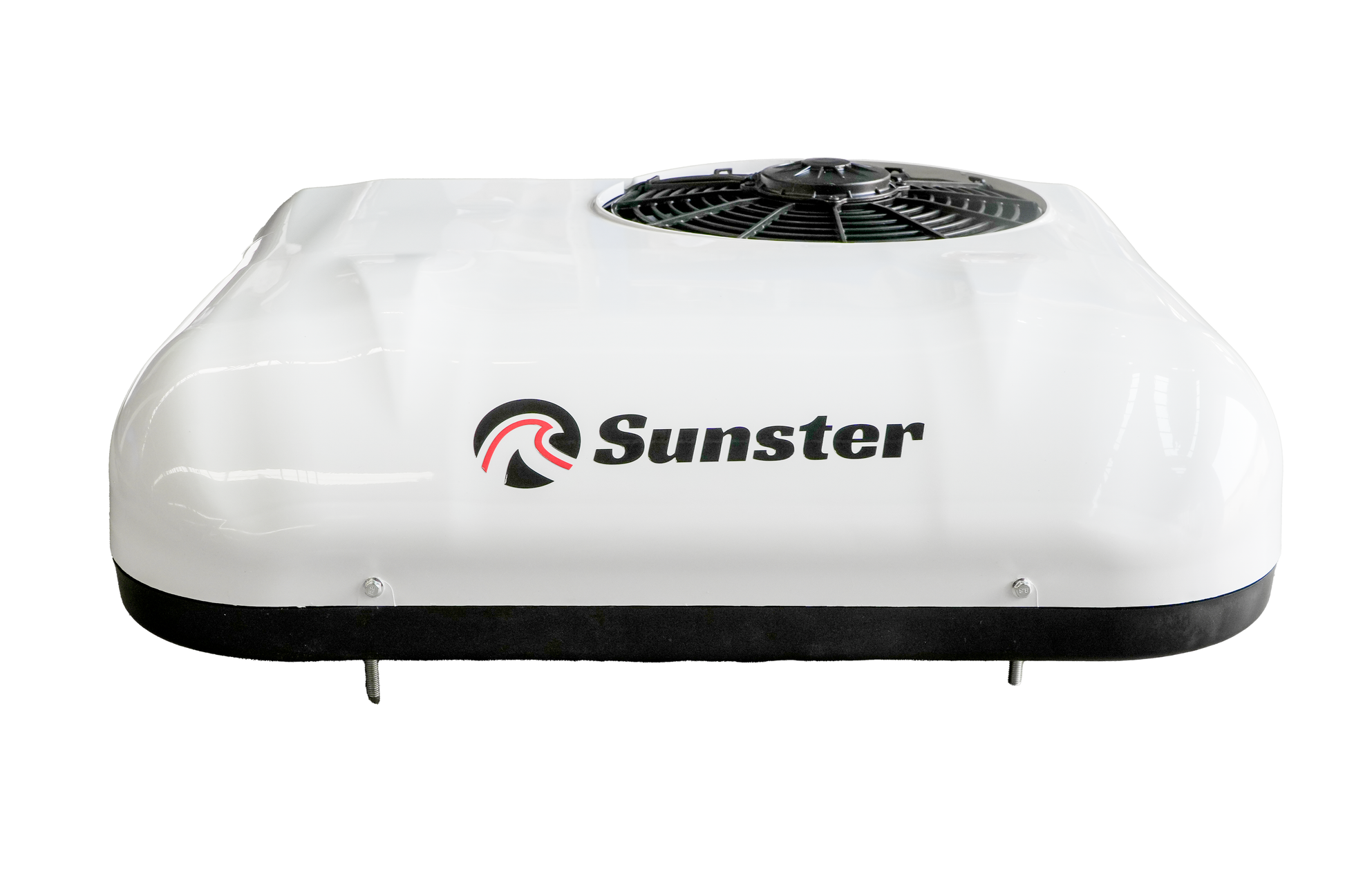

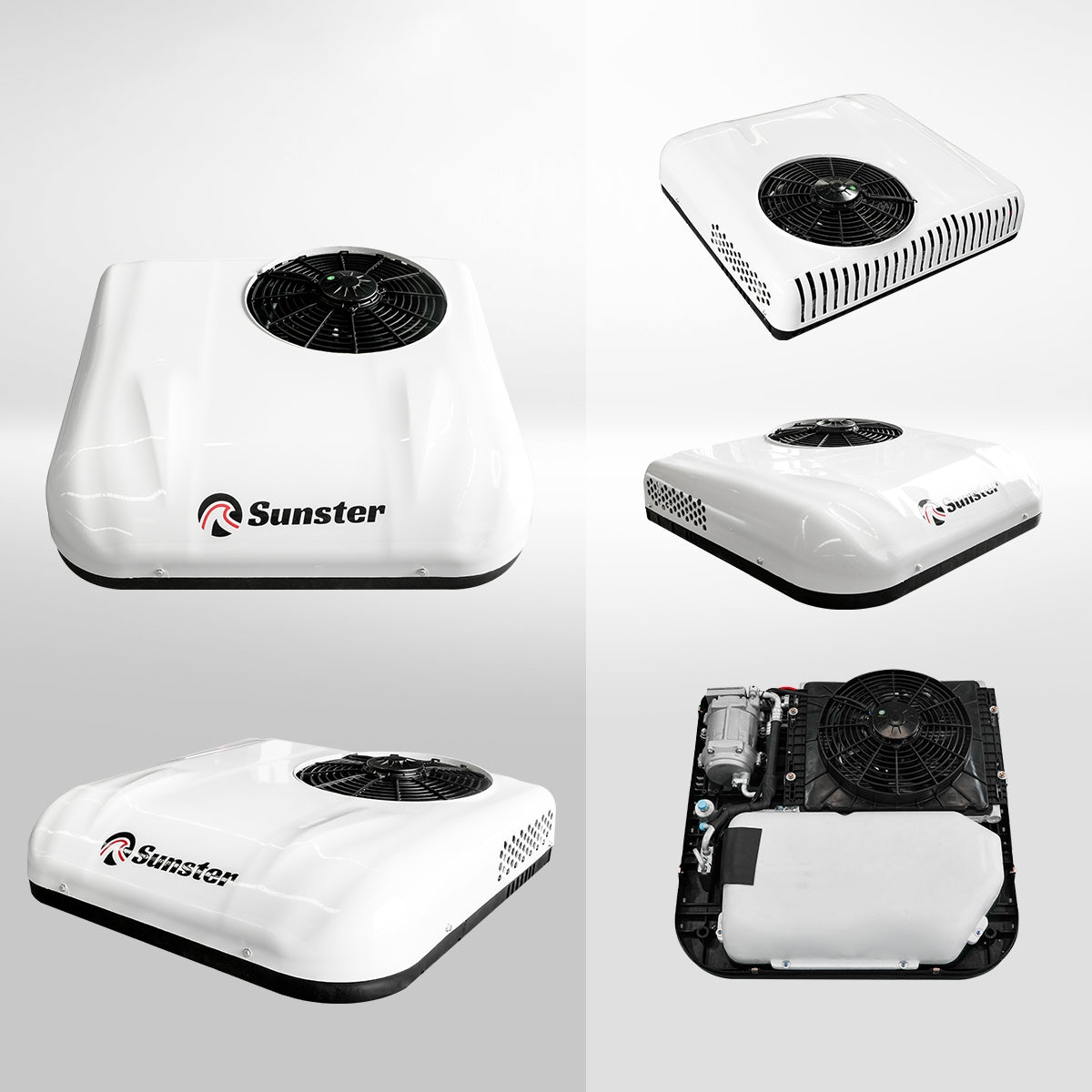

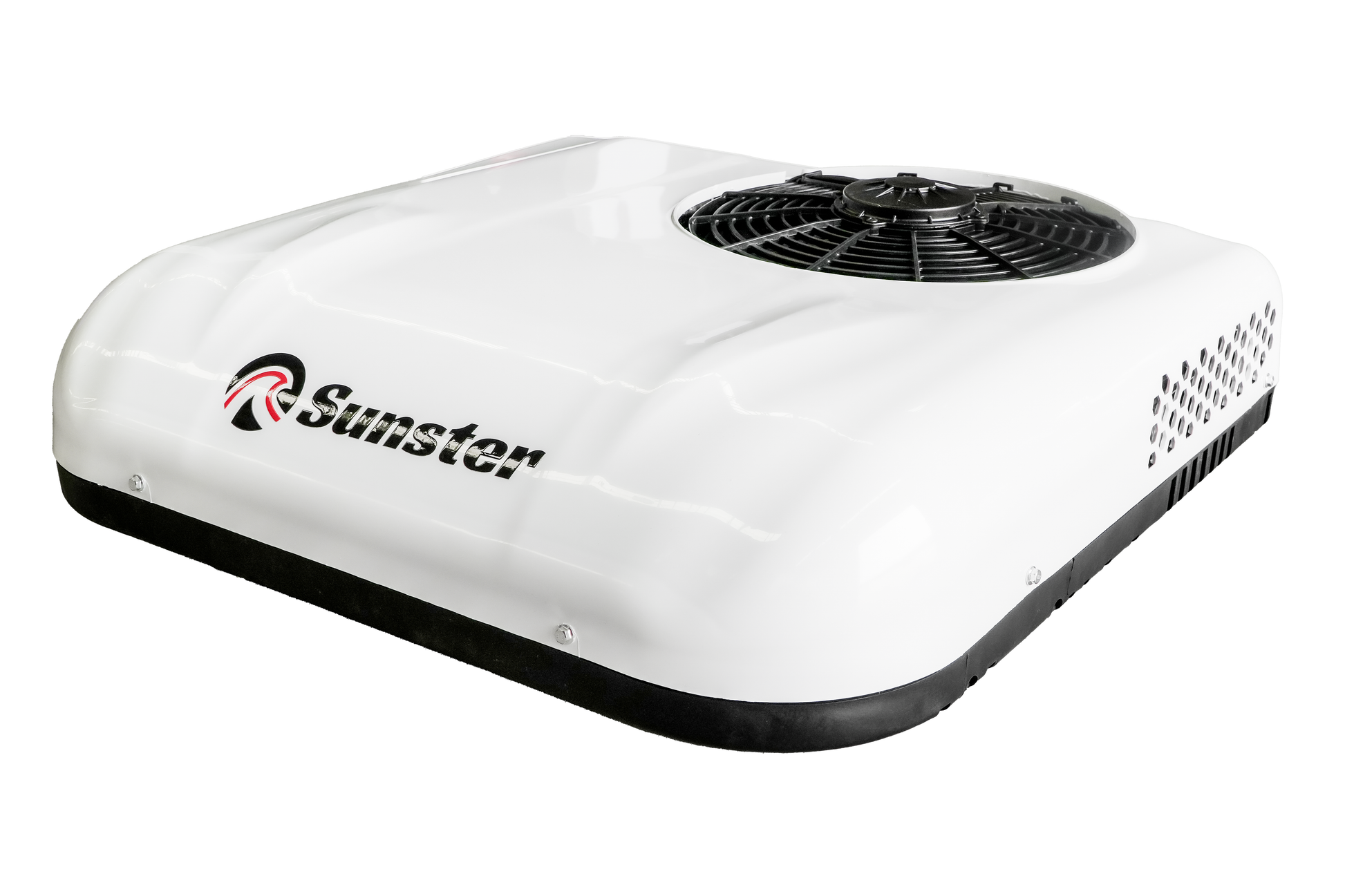

🌬️ Cooling Roof Air Conditioner

Stay cool and comfortable even in the hottest summer! ☀️❄️ Our caravan rooftop air conditioner features a powerful electric scroll compressor, energy-saving DC technology, and works even when the engine is off—powered directly by your vehicle’s battery 🔋. Eco-friendly and efficient, it’s your best summer travel companion 🚐🌿.

---

🔋 Low Voltage Protection

Equipped with an intelligent low-voltage protection system, the unit automatically cuts off power when battery voltage is too low ⚠️, preventing battery damage and extending its lifespan. Smart and safe! 🛡️

---

🪶 Lightweight & Durable Design

Crafted with an ultra-light ABS shell 🧊, this air conditioner resists high temperatures and aging. It operates on 12V or 24V systems, compatible with most caravans, vans, and light trucks. Plus, the ultra-quiet motor and mute compressor keep noise below 35 dB—guaranteeing peaceful sleep 🌙😴.

---

❄️ Efficient Cooling & Whisper-Quiet

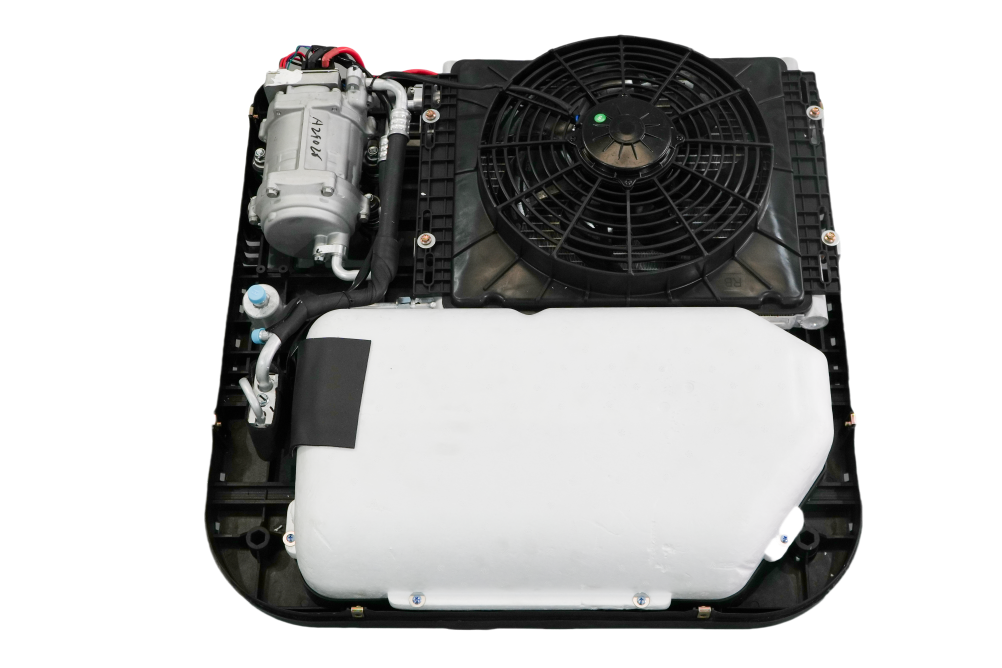

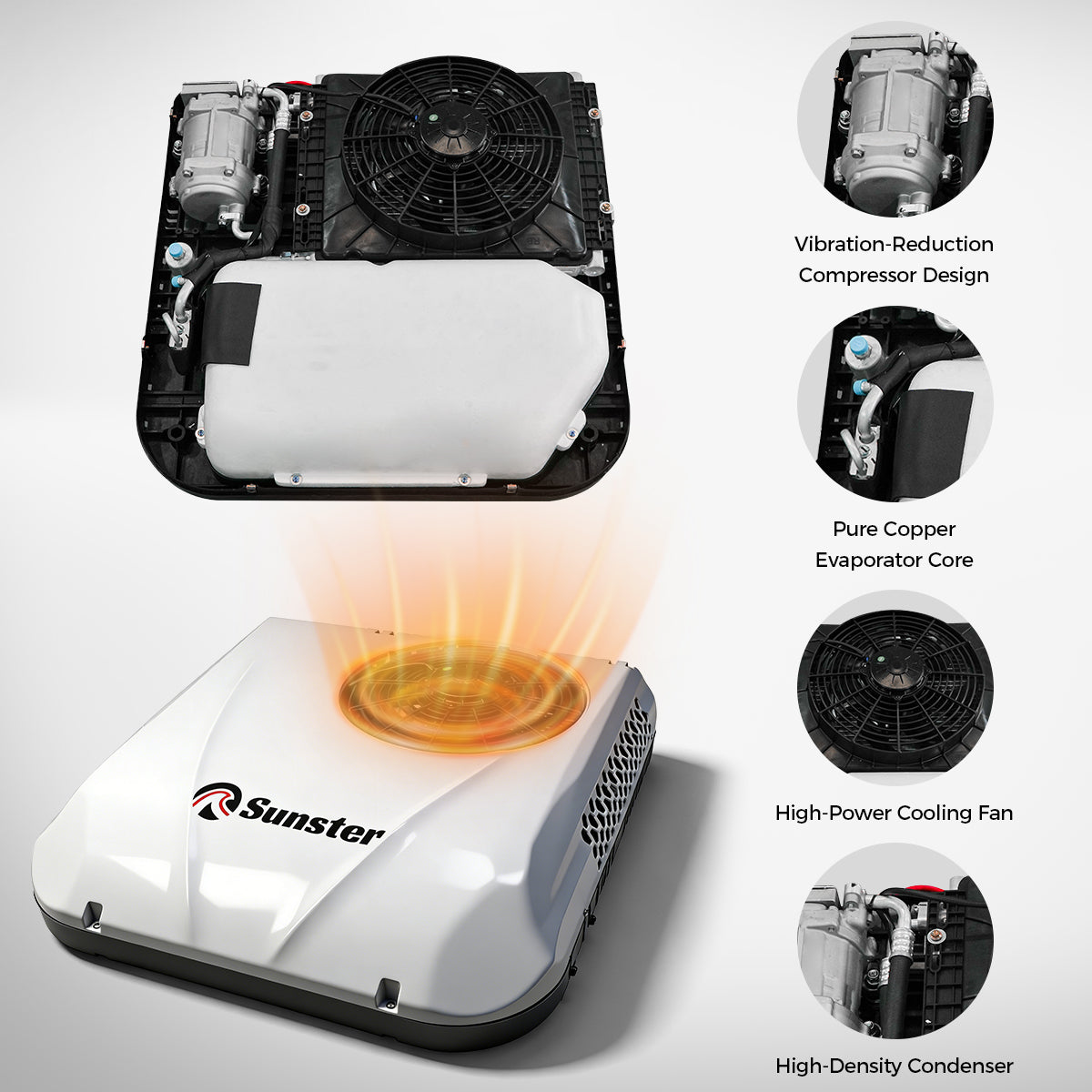

Thanks to the high-efficiency electric scroll compressor, enjoy:

✅ Fast cooling

✅ Lower fuel and power consumption

✅ Strong cooling power

✅ Ultra-low noise (just 20 dB in sleep mode!)

✅ Long-lasting performance

---

🚐 Built for Your Camper

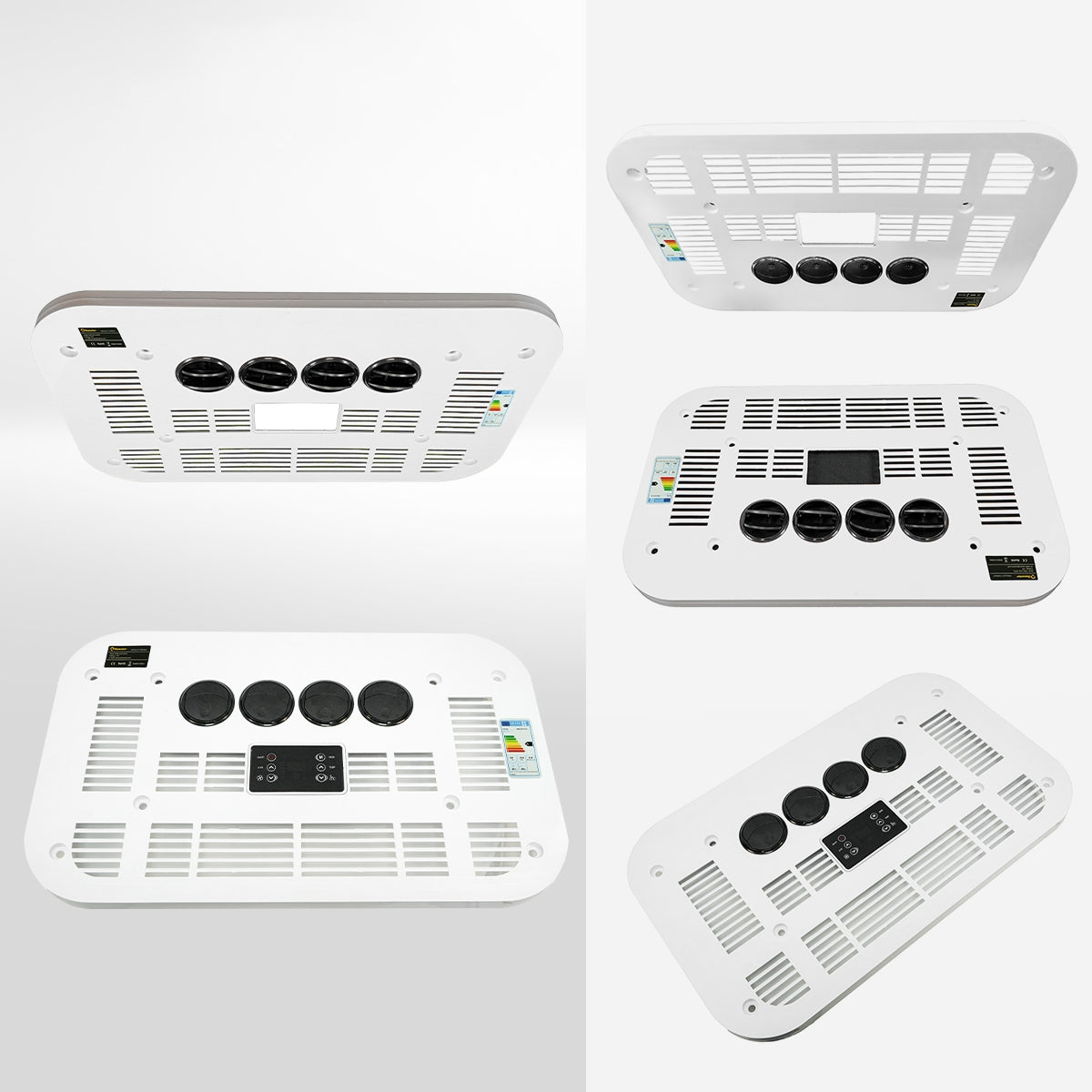

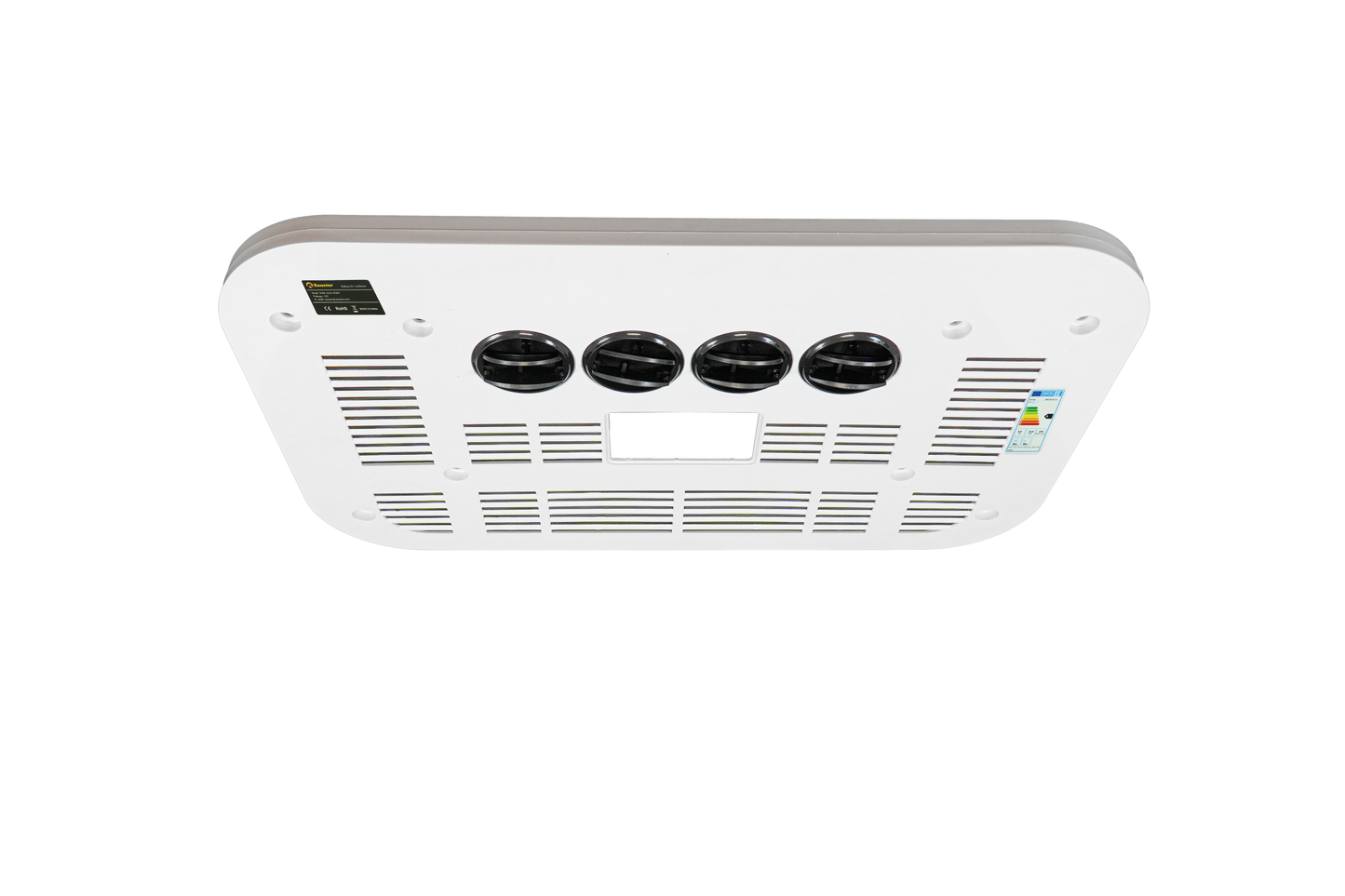

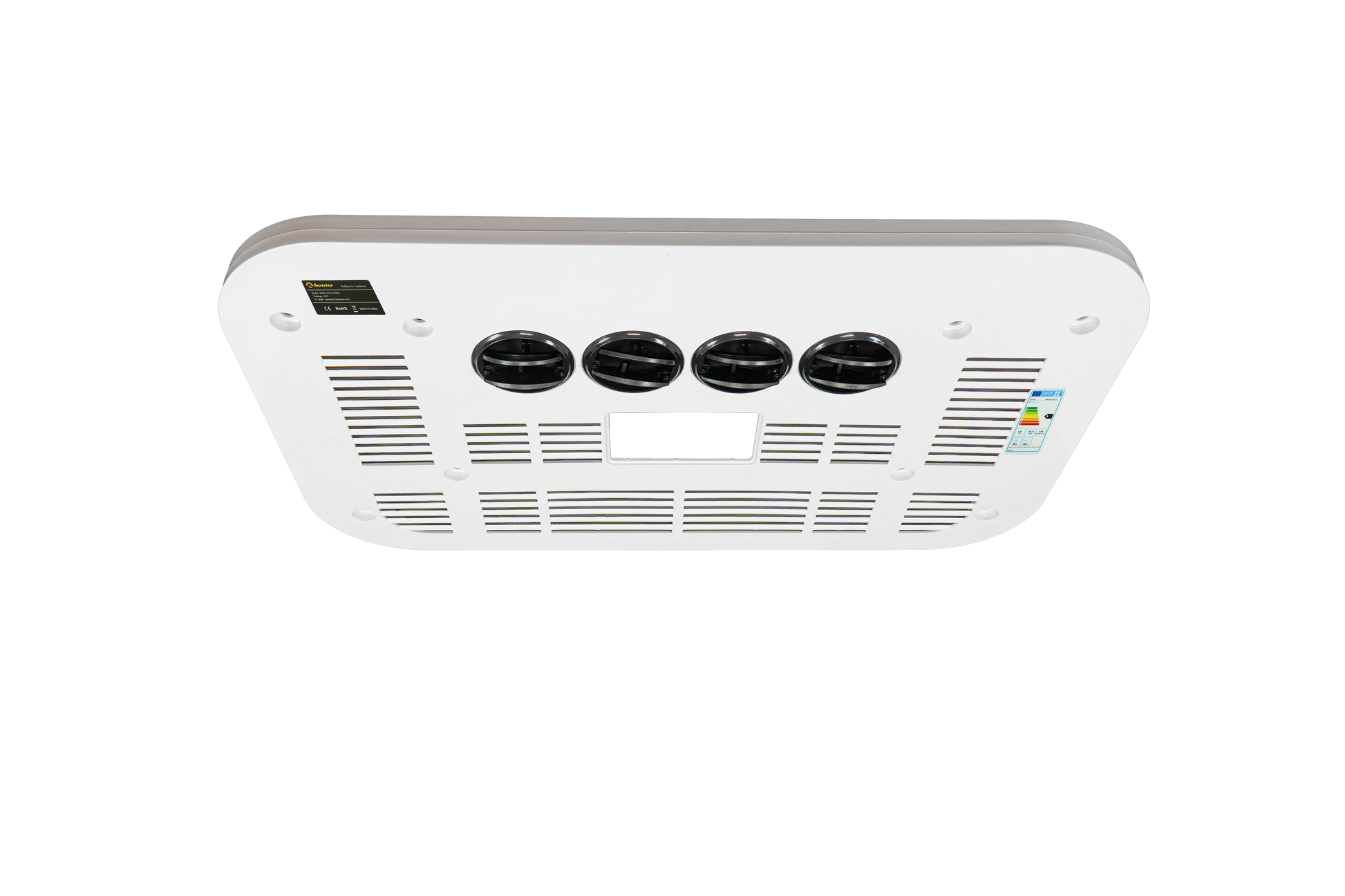

With a 4-hole air outlet and high-performance internal cooler, this unit ensures rapid heat dissipation and instant cooling. Made of ultra-light ABS that won’t deform in heat ☀️—this is a must-have for summer camping!

---

🚘 Universal Fit

Perfect for most vehicles including caravans, RVs, trucks, buses, excavators, and SUVs 🛻🚌🚛.
Wherever your journey takes you, this AC unit is ready to deliver cool comfort.

---

⚡ Efficiency Meets Economy

Our air conditioner is designed with modern efficiency in mind—low fuel usage, fast cooling, and a quieter ride. Upgrade your driving experience with powerful and silent cooling 💨💤.

---

🧊 Modern & Stylish

Built with an ultra-light ABS shell, it’s both durable and stylish. High temperature and aging resistant, it ensures safe, modern air conditioning while keeping your RV in top shape 🚐✨.

---

☀️ Style, Comfort & Remote Operation

Enjoy fresh air during hot days and operate the system remotely. Looking for a combo with hot water heating? Reach out via email—we’ve got you covered 🔥💧.

---

🔄 Unparalleled Versatility

Whether it’s an RV, truck, excavator, or SUV, this air conditioner adapts to your needs. One solution, all vehicles ✅.

---

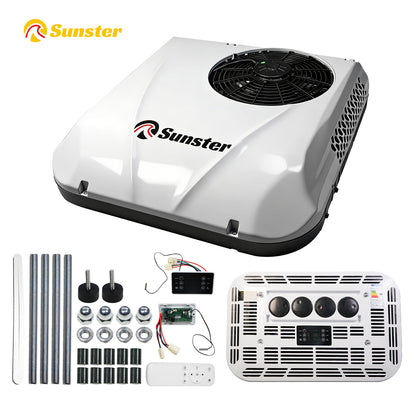

🛠️ Installation Steps

1.🧼 Clean the window/roof surface

2.📏 Apply cotton sealing strips

3.🔁 Smooth and seal the corners

4.📦 Place and adjust the AC on the roof

5.🔧 Install and fix the brace

6.🔩 Secure with screws according to the sunroof

7.⛓️ Fasten the tie

8.🔌 Connect the wiring harness (hidden inside)

9.⚡ Connect to power supply

10.🧽 Apply sponge strips

11.🧷 Attach interior panel

12.✅ Test the air conditioner

---

⚠️ Important Notes

❗ No refrigerant included. Please add R1234yf or R134a (450g).

🛢️ Refrigeration oil type: POE68 (included)

🕳️ Vacuum for 10 minutes before adding refrigerant (watch for negative pressure).



🔋 Battery Requirements:

12V system: 100Ah+ battery & 60A generator

24V system: 100Ah+ battery & 50A generator
